YN959G Log Grapple Loader

FOB Reference Price:Get Latest Price
  • >=1 Units
    $53,000.00
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
7960mm 3070mm 3490mm
Condition:
New
Brand Name:
Yineng
Place of Origin:
Shandong, China (Mainland)
Type:
Front Loader
Moving Type:
Wheel Loader
Rated Load:
5000 KG
Certification:
CE ISO
Model Number:
YN 959G
Engine:
Shangchai CAT SC11CB220G2B1
Rated Power:
162kw(220Hp) @ 2200r/min
Operating Weight:
17000KG
Standard Breakout Force:
170 kN
Standard Dump Height:
3100mm
Displacement:
10.5L
Emission:
Stage II
Delivery Time:
40 days
Bucket Capacity:
3.0m3
Name:
China Yineng Brand YN959G wheel loader With Joystick Control
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Unit/Units per Month Forestry Equipment YN959G wheel loader With Log Grapple
Packaging & Delivery
Packaging Details
1 unit naked within 1 x 40HQ container
Forestry Equipment YN959G wheel loader With Log Grapple
Port
Qingdao
Lead Time :
40 days,China High Quality Construction Equipment Wheel Loader
Product Description




YN959G Log Grapple Loader

SPECIFICATIONS FOR 5 TONS WHEEL LOADER

Engine
Engine
Shangcai CAT
SC11CB220G2B1
Cylinders & Strokes
6 Cylinders
4 Strokes
Rated Power
162kw(220Hp) @ 2200r/min
Displacement
10.5L
Aspriation
  Aspriation Turbocharged Air
Emission
Stage II

Main Performance
Rated Load
5000kg
Operationg Weight
17000kg
Bucket Capacity
3.0m3
Max. Tractive Force
150KN
Max. Breakout Force
170KN
Max. Dumping Height
3100mm
Max. Dumping Reach
1250mm
 Dimension
7960x3070x3490mm
Transmission
Transmission
ZF
 ZF WG180
Transmission Type
Countershaft Power Shift
Shifting
Electrical-Hydraulic Control
Number Of Speed
4 Forward
3 Reverse
Max. Speed
38km/h
Hydraulic System
Control System
Joystick/Pilot Control
System Working Pressure
18MPa
Boom Lifting Time
6S
Cycle Time
11S
Pumps
Gear
Steering System
Full Hydraulic Sensing Steering System
Service Brake
Air over Hydraulic Caliper Disc

Main Features

1) CAT technology engine and ZF transmission bring the whole wheel loader strong power, high torque, perfect reliability.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts, avoid the equipement stop because of the small parts broken, make the whole equipement working smoothly.

3) Dual-pump conbined working system and hydraulic flow expanding steering system, these technology save the power of engine engine.

4) Pilot/Joystick control, centralized lubrication system, full hydraulic sensing steering system, center slewing of the rear anxl fuction, quick coupler/hitch, electromagnet positioning technology, intelligent electronic monitoring system, independent enclosed cabin with panoramic visibility, air conditioner, rear view camara etc, all these fuctions provide the operator a very comfortable working environment, turn out to be the Harmony of Equipement & Human.

5) Integrated structure as the whole wheel loader's body, YN 959G has a very strong, tough body, never damaged.

Certifications
Detailed Images

Engine

Name: Diesel Engine

Brand: Shangcai CAT

Original: China

Domestic famous engines, strong power, low fuel consumption, CAT technology, engine parts can be got easily in the whole world.

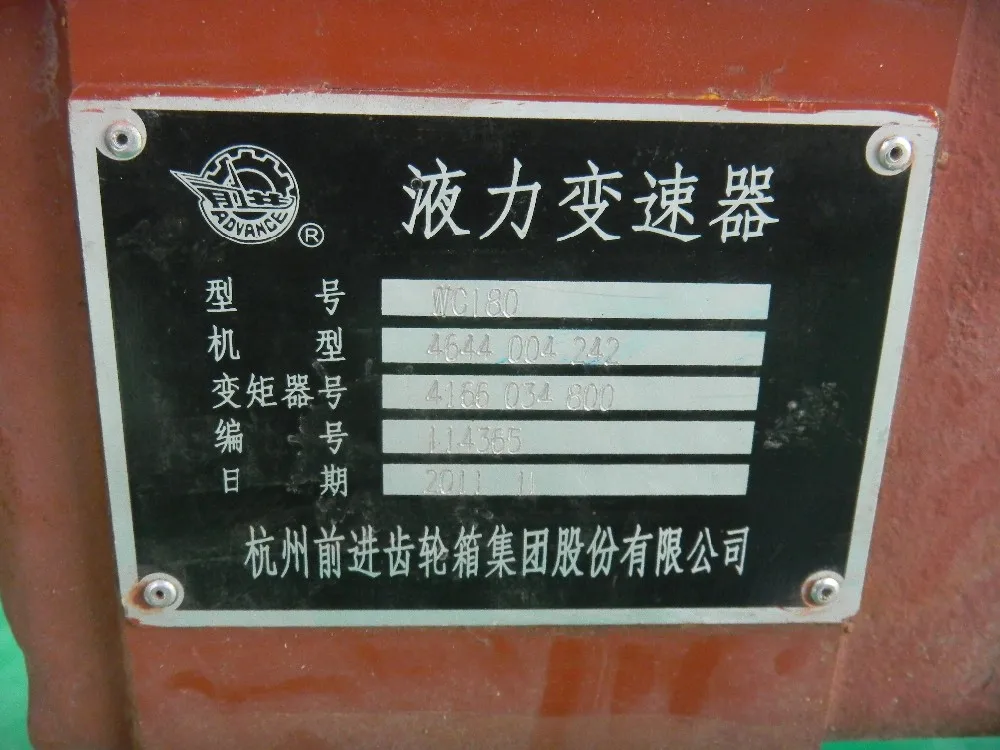

Name: Transmission
Brand: ZF Transmission
Original: China
ZF technology WG-180 transmission, top brand transmission, perfect reliability, huge torque, worldwide spare parts services.

Name: Joystick Control
Brand: Liuhe
Original: China
Lifting, dumping, floating, forwarding, reverse, all fuctions in one joystick, you just push the button and shake it.

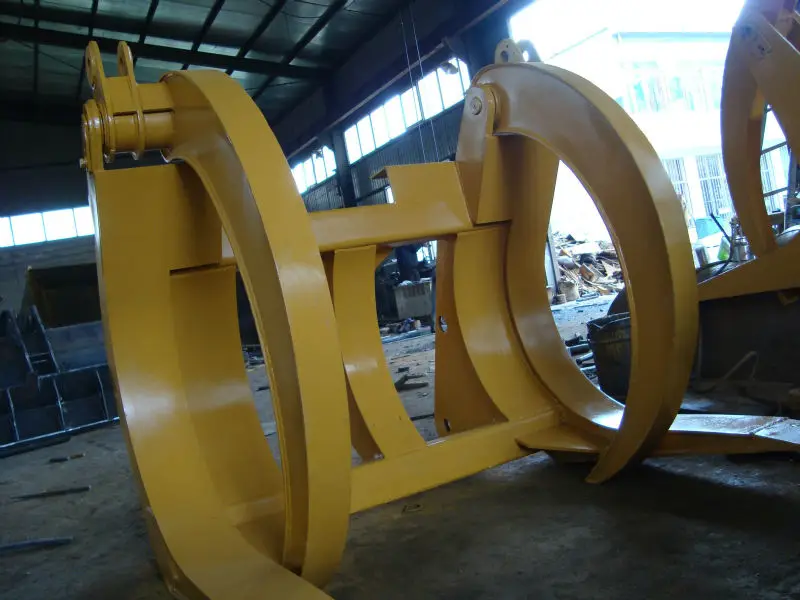

Name: Wheel Loader log grapple
Brand: YN
Original: China


.With quick coupler, changing attachments is quick and easy, fewer machine to get more jobs done, specially designed for forestry industry and log handling, different size to choose.

Our Service

Pre-Sales Service

* Inquiry and patient to commuinicate and record what you want and care about.

* design and chane to satisfy what you need.

* View our Factory and welcome reception.

After-Sales Service

* fast and complete spare parts service, technology support.

* long time cooperation and support.


Packing & Delivery
Packaging
Main Machine
Weight: 17 Tons

Taking the cabin, wheels, drive axles, bucket and ladder stand down, put the main machine into the 40 feet container.
Packaging
YN 959G
Weight: 17 Tons



Packaging Details
The Whole Machine is Loaded on Board, fixed well. When the shippment arrives, the customers just need drive it away, no need assembly.
